一、作用

ISO鼓后搖篩適用于篩分冶金燒結礦，是替代人工手篩篩分、減輕操作人員勞動強度、提高篩分正確性、可比性的理想設備。并具有結構緊湊、使用方便、運轉可靠等特點。電器控制設有電子計數控制器，使篩內試料得到準確的篩分次數，消除手篩操作的人為誤差。

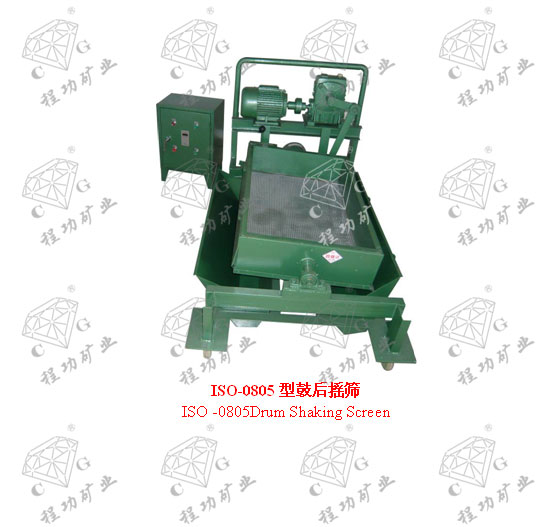

ISO Drum Shaking Screen is applicable to screening of metallurgical sintered ore is an ideal apparatus to replace the manual screen for reducing labor intensity for operator and improving correctness and comparability of screening. It features compact structure, easy operation and reliable running among others. It is complete with Electronic Counting Controller, allowing test materials to have the correct screening frequency and avoiding human errors arising from manual operation of screen.

二、技術參數

三、結構簡介

III. Structure

鼓后搖篩為移動式，可機器下方裝有4個滑輪，由電器控控制箱單獨控制，機電一體化設計，移動靈活。

The after drum shaking screen is mobile. The bottom of the machine is equipped with four wheels which are independently controlled by the electric control box. It adopts mechanical-electrical integration system design and can move freely.

本設備由一個減速電機、一個電機、軸承座、料箱、連桿機構、傳動機座、接料盤等組成。

This equipment is composed of one reducing motor, one motor, bearing pedestal, feed box, linkage mechanism, drive stand, material receiving disk, etc.

1、機座由槽鋼焊接、料箱支架通過軸承座支撐兩邊，由減速機傳動搖臂，以20r/min來實現試樣日的。

1. Its base is welded by channel steel. The feeder bracket supports its two sides through the bearing pedestal and the speed reducer drives the rocker arm at the speed of 20r/min, to test samples.

2、控制部件：由智能計數器控制。

2. Control assembly: Controlled by intelligent counter.

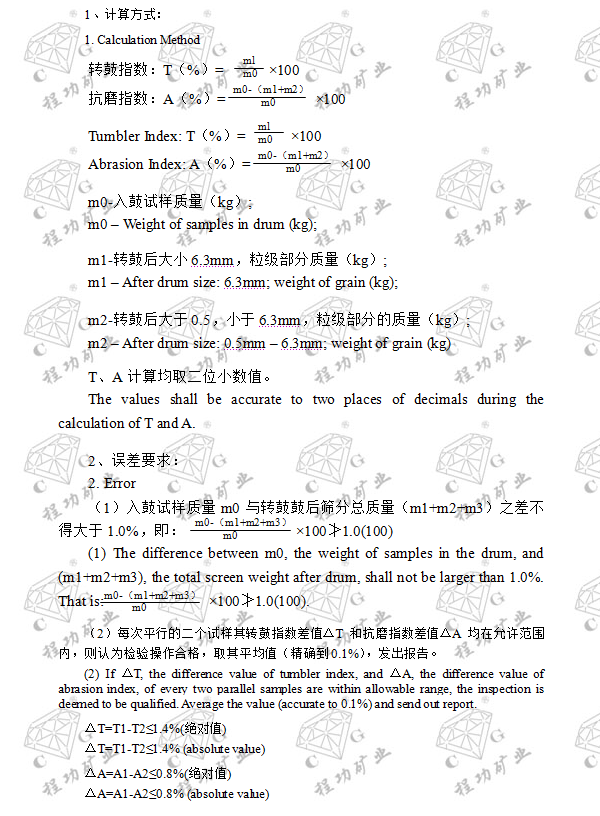

四、檢驗結果計算

IV. Calculation of Inspection Results
