本機是集擺式給礦機、棒磨機、螺旋分級機、螺旋輸送機等單機而成的閉路磨礦設備，可作為連續磨礦或研究測定礦石可磨性指標之用。亦可供選礦精選廠作磨礦設備使用，或供其他工業部門磨細物料之用。

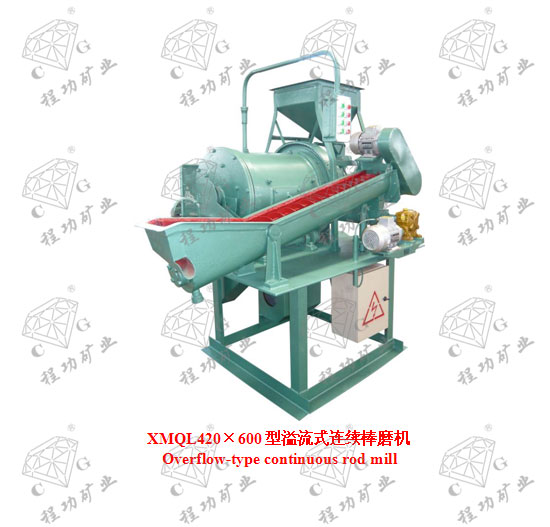

This machine is closed-circuit grinding machine integrating oscillating feeder, rod mill, spiral classifier, screw conveyor, and other single machines. It can be used to continuously grind ores or study and test the grindability indexes of ores. It can also be used in ore dressing plants as ore grinding equipment or used in other industrial sectors to mill materials.
| 型號規格Model | 單位 Uite | XMBL-Φ420×600 |
| 磨筒尺寸 Drum size | mm | φ420×600 |
| 磨筒轉速 Drum speed | r/min | 53 |
| 磨筒容積 Volume | L | 80 |
| 給料粒度 Feed size | mm | -6 |
| 出料粒度 Output size | mm | -0.5以下 |
| 電機功率 Power | kw | 1.5 |
| 處理量 Capacity | kg/h | 150 |
| 外形尺寸 Overall dimensions | mm | 1630×1260×1730 |
| 重 量 Weight | kg | 800 |
我們要求服務人員時刻關注客戶，及時解決設備問題，確保顧客的利益比一切都重要。
