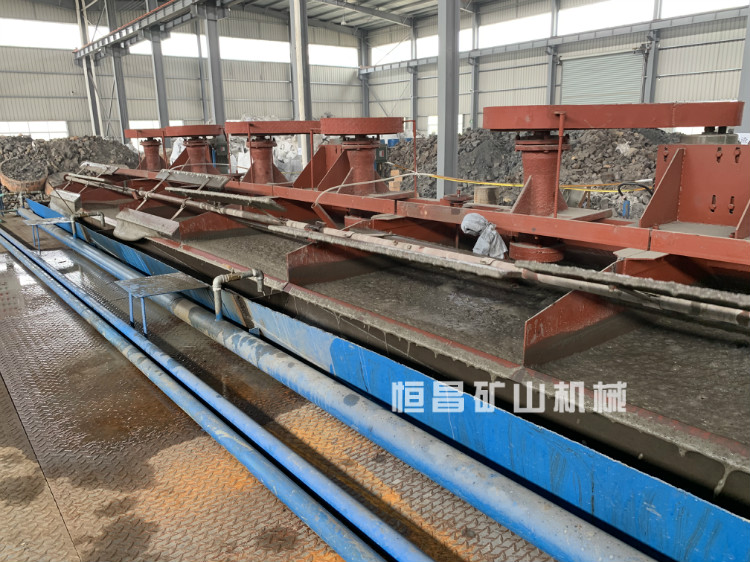

XJ、SF型自吸氣機械攪拌式浮選機
Mechanical
agitating flotation machine with auto air suction
國家行業標準JB/T9038
SF型浮選機采用了結構新穎的前傾式槽體,雙葉片水輪,配有導流管和假底裝置，槽內礦漿按固定的流動方式進行上、下雙循環，有利于粗粒礦物的懸浮，可自吸空氣，自吸礦漿，不需泡沫泵。
New siructure of impeller is backwards inclined double impellers equipped with honeyconb duct and dummy bottom.Therefore,the slurry in the tand will cycle upward and downward in a fixed flow manner,which is helpful to the suspension of those coarse particles.Airand slurry are naturally sucked without need for foam pump.
| 型號規格Model | 容積Volume | 槽體尺寸 Cell size | 葉輪 直徑Impeller Dia. | 葉輪 轉速Impeller speed | 處理能力Capacity | 功率Power | 單槽質量 Singe cell weight |
| m3 | mm | mm | r/min | m3/min | kw | kg | |
| XJ-3 | 0.35 | 700×700×700 | 300 | 483 | 0.18-0.4 | 2.2/0.55 | 430 |
| XJ-6 | 0.62 | 820×900×850 | 350 | 400 | 0.3-0.9 | 3/1.1 | 755 |
| XJ-11 | 1.1 | 1100×1100×1000 | 500 | 330 | 0.6-1.6 | 5.5/1.1 | 1416 |
| XJ-28 | 2.8 | 1750×1600×1100 | 600 | 280 | 1.5-3.5 | 11/1.1 | 2113 |
| XJ-58 | 5.8 | 2200×2200×1200 | 750 | 240 | 3--7 | 22/1.5 | 3400 |
| SF-0.37 | 0.37 | 700×700×750 | 296 | 386 | 0.2-0.4 | 1.5/0.55 | 468 |
| SF-0.7 | 0.7 | 820×900×950 | 350 | 400 | 0.3-0.9 | 3/1.1 | 805 |
| SF-1.2 | 1.2 | 1100×1100×1100 | 450 | 312 | 0.6-1.2 | 5.5/1.1 | 1373 |
| SF-2.8 | 2.8 | 1700×1600×1150 | 550 | 268 | 1.5-3.5 | 11/1.5 | 2138 |
| SF-4 | 4 | 1850×2050×1200 | 650 | 220 | 2--4 | 15/1.5 | 2582 |
| SF-8 | 8 | 2200×2900×1400 | 760 | 191 | 4--8 | 30/1.5 | 4129 |
| SF-10 | 10 | 2200×2900×1700 | 760 | 191 | 5--10 | 30/1.5 | 4486 |
| SF-16 | 16 | 2850×3800×1700 | 760 | 191 | 5--16 | 30×2/1.5 | 8320 |
| SF-20 | 20 | 2850×3800×2000 | 760 | 191 | 5--20 | 30×2/1.5 | 9828 |
我們要求服務人員時刻關注客戶，及時解決設備問題，確保顧客的利益比一切都重要。
