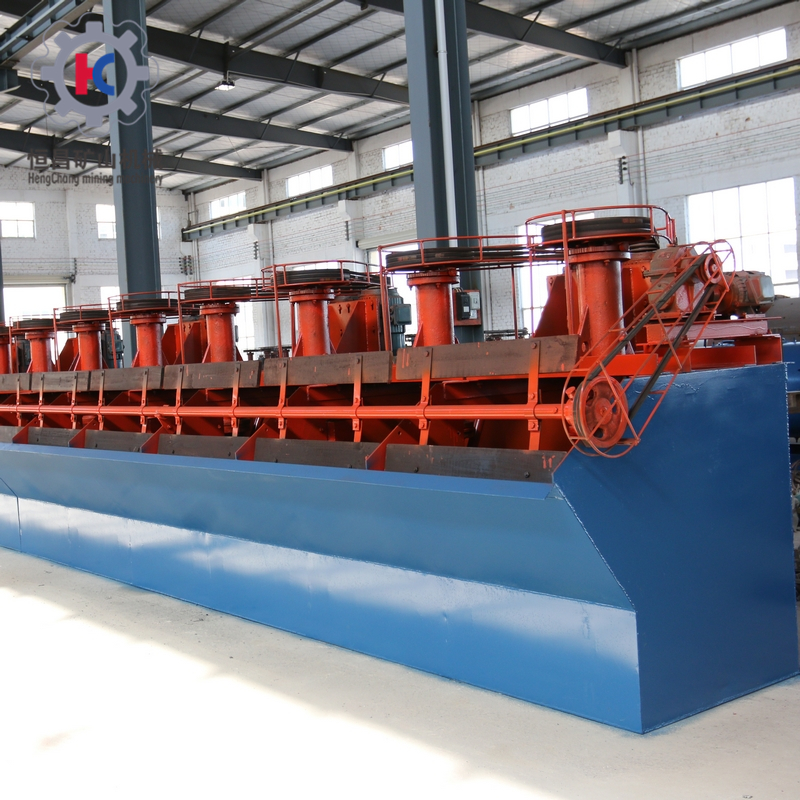

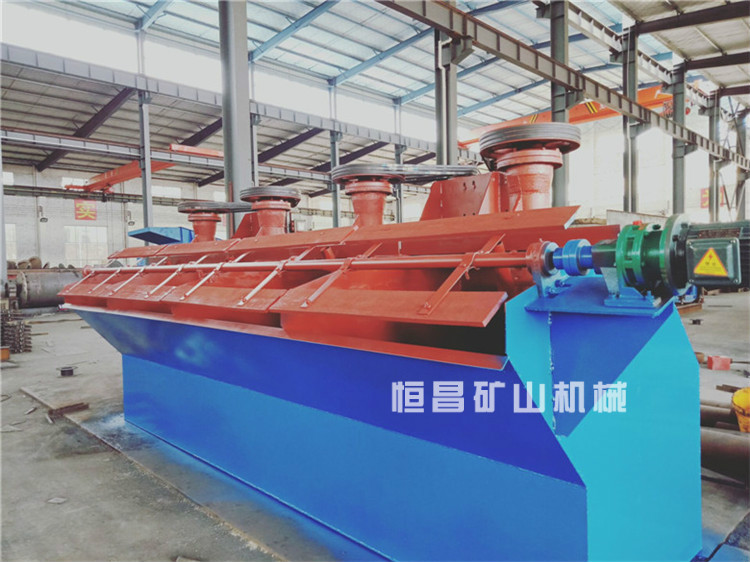

CLF、XJC型粗顆粒浮選機 Mechanical agitating flotation machine
| 型號規格 Model | 容積 Volume | 槽體尺寸 cell size | 葉輪直徑 Impeller Dia. | 葉輪轉速 Impeller speed | 處理能力 capacity | 電機功率 power | ****充氣量 Max.air flow | 單槽質量 singe cell weight |
| m3 | mm | mm | r/min | m3/min | kw | m3/m2min | kg | |
| CLF-2 | 2 | 1200×1600×1250 | 0.5-2 | 7.5/5.5 | 0-5 | 1591/1418 | ||
| CLF-4 | 4 | 1600×2100×1500 | 580/620 | 220/231 | 1-4 | 15/11 | 0-7 | 3002/2702 |
| CLF-8 | 8 | 1900×2500×1950 | 1-6 | 22/15 | 0-12 | 5168/4654 | ||
| CLF-16 | 16 | 2500×3200×2400 | 1-8 | 45/37 | 0-16 | 9230/8970 | ||
| XJC-40 | 4 | 1700×1700×1600 | 700 | 190 | 3--6 | 11/1.1 | 2-3.5 | 2739 |
| XJC-80 | 8 | 2200×2200×1800 | 900 | 170 | 4--8 | 22/1.1 | 6--8 | 3854 |
| XJC-160 | 16 | 2800×2800×2200 | 1000 | 160 | 8--20 | 30/1.1 | 6-9.5 | 6077 |
