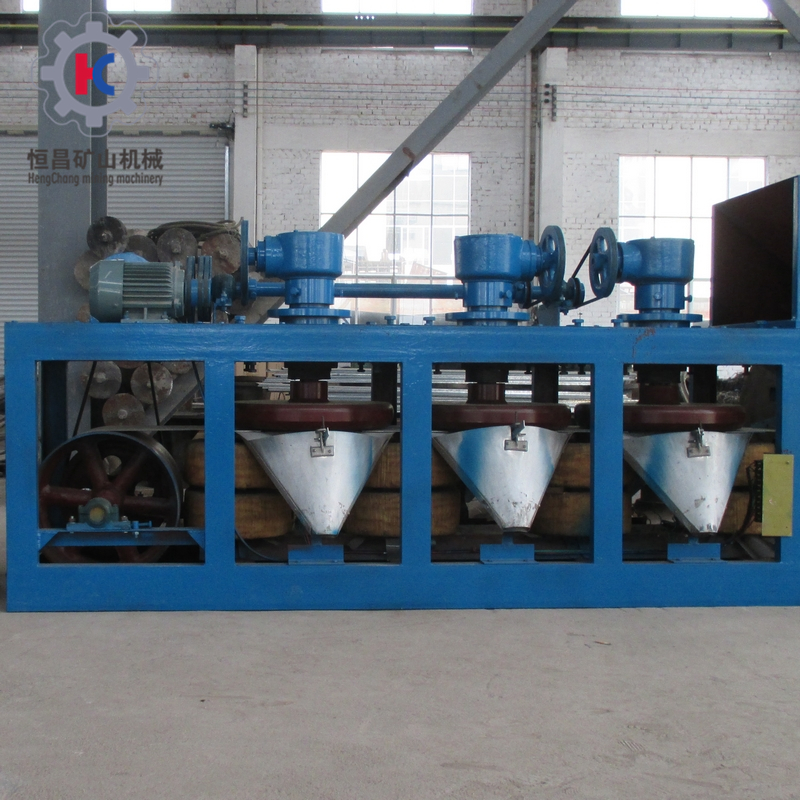

3PC型盤式強磁選機
3PC型盤式強磁選機 Disk intensified magnetic separator
本機系盤式強磁選機，適用于鈦鐵礦、稀土礦、鉻鐵礦、鎢、錫礦、褐鐵礦、鈮、鉭礦、鋯英石、金紅石、獨居石、紅柱石、石榴石、蘭晶石、長石、石英等各種有磁性差異礦物的分選或非金屬礦物除鐵。
通過本機一次可分選出4種產品，本機適用于干式選礦。
主機由給礦裝置、弱磁滾筒、傳動部分、物料輸送裝置、磁盤、電磁系統、機架等組成。電控部分由控制、調壓、整流、儀表等元件組成。結構緊湊，參數穩定，安裝簡易，使用維護方便。
The device is a Dry Intensified Magnetic Separator, applicable for separations of ilmenite, rare earth ore, chromite, tungsten and tin ores, limonite, columbium and tantalum ores, zircon, rutile, monazite, andalusite, garnet, kyanite, feldspar, quartz and other minerals with magnetic differences or removal of iron in nonmetallic minerals.
4 varieties of products can be obtained by separation of the device.
Main device comprises feeding unit, weak magnetic roller, drive part, material conveying apparatus, magnetic disk, electromagnetic system, frame and others. The electric control section consists of components of control, voltage regulation, rectification, instrument and so on. It features compact structure, stable performance, easy installation and convenient operation and maintenance.
| 型號規格 Model | 單位Uite | 3PC-500 | 3PC-600 | 3PCX600 |
| 磁場強度 Magnetic intensity | 毫特 Hauteur | 距帶面2mm 盤齒1700 Distance to beltsurface 2mm Disk teeth 1700 | 距帶面2mm 盤齒1800 Distance to beltSurface 2mm Disk teeth 1800 | 距帶面2mm 盤齒2000 Distance to belt 2mm Disk teeth 2000 |
| 磁盤數量 Number of magnetic disk | 個 Piece | 3 | 3 | 3 |
| 磁盤直徑 Diameter of magnetic disk | mm | 500 | 600 | 600 |
| 磁盤轉速 Revolution of magnetic disk | r/min | 25-40 | 22-38 | 22-32 |
| 電源 Power supply | V | 380 | 380 | 380 |
| 激磁線圈 Exciting coil | 組 Unit | 4 | 4 | 4 |
| 配用電機 Matching motor | kw | 0.75 | 1.5 | 1.5 |
| 激磁功率 Exciting power | kw | 1.5 | 1.6 | 1.6 |
| 線圈溫升 Coil temperature rise | ℃ | 65 | 65 | 65 |
| 線圈額定電流 Rated current of coil | A | 1.1-1.8 | 1.2-1.9 | 1.2-2.2 |
| 使用定額 Duty rating | 連續 Continuous | 連續 Continuous | 連續 Continuous | |
| 供料寬度 Feed width | mm | 210 | 300 | 300 |
| 原料粒度 Feed size | mm | ≤2 | ≤2 | ≤2 |
| 處理量 capacity | kg/h | 100-500 | 120-800 | 80-800 |
| 外形尺寸 Outside dimension | mm | 2800×800×1220 | 3200×870×1160 | 3150×900×1250 |
| 質量Weight | kg | 1900 | 2200 | 2300 |
