YT型、YSP型中淺孔鑿巖機 Medium-shallow Hole Rock Drill
YG型、YQ型中深孔及深孔鑿巖機 Medium-deep Hole and Deep Hole Rock Drill

鑿巖機械廣泛應用于煤炭、冶金、鐵道、水利、國防等巖巷掘進和石方工程，適用于中硬和堅硬巖石上鉆鑿炮孔。

The Rock Drilling Machine can be widely used in tunneling and rock excavation for coal mine, metal mine, railway building, irrigation contruction and national defence, can be used for drilling holes on the hard rock and medium-hard rock.

一、使用范圍

I. Application Scope

 YT25型氣腿式鑿巖機是一種高效、節能的鑿巖機械。它與FT160X型氣腿配套，廣泛用于煤炭、冶金、鐵道、交通、水利、基建和國防等巖巷掘進和石方工程中鉆鑿水平和傾斜的炮眼。作為一極多用、本機還可以通過FT170HJ型專用氣腿與環形鉆架配套用于立井掘進機械化作業鉆鑿垂直炮眼。鑿孔直徑可達46毫米，深度5米以上。該機配置手持手把，還可以手持鑿巖機使用。

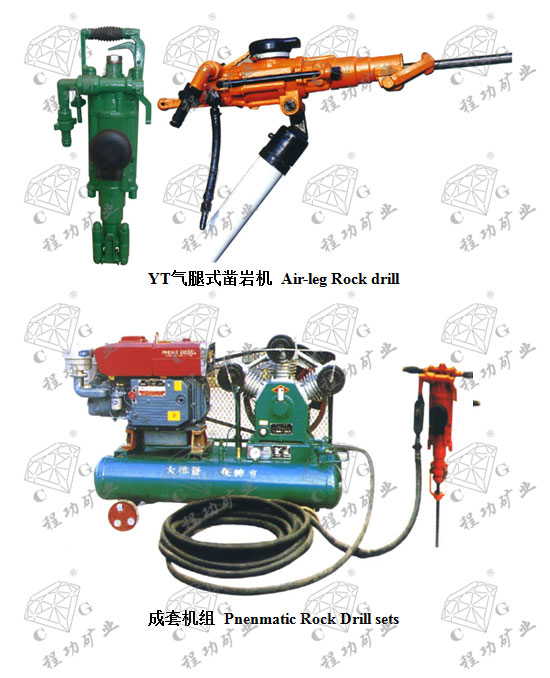

YT25 air-leg rock drills are a kind of high-efficiency and energy-saving rock drilling machinery. They are used with FT160X air leg. Such drills are widely used to excavate the stonedrif in coal, metallurgy, railway, transportation, water conservancy, capital construction, national defense, etc and drill horizontal and oblique shot hole in rock excavation. This machine can also be used in the drilling of vertical shot holes of shaft sinking mechanized operations through FT170HJ special air leg and ring drilling rig. The drilling diameter can reach 46mm and the drilling depth can reach over 5m. This machine is equipped with handheld handle or handheld rock drills.

二、技術參數

三、工作原理及操縱

Ⅲ. Working Principle and Control

YT25型鑿巖機活塞的往復運動采用雙氣路無閥配氣，它是利用活塞尾部的圓柱及凹槽在活塞運動中自動配氣。

The reciprocating movement of piston in YT25 roll drills adopts double gas circuit valueless gas distribution. They automatically distribute air during piston motion through the cylinder and groove at the end of the piston.

1、活塞的往復運動

1. Reciprocating Movement of Piston

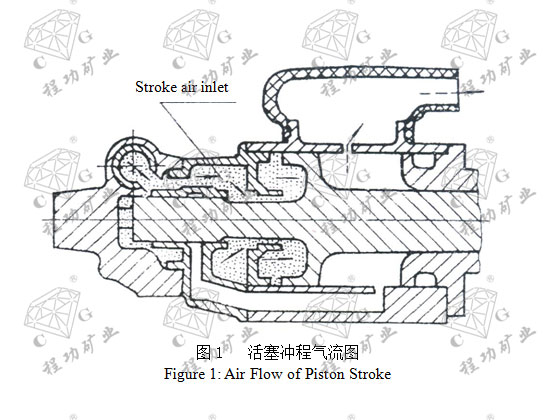

a、沖程：如圖1。壓縮空氣從進氣彎管進入操縱閥，通過氣路進入氣缸中活塞大圓左側的空腔（簡稱左腔），推動活塞向右運動（往前）。

a. Stroke: As shown in Figure 1. The compressed air enters the operating valve from the intake bend. It enters the cavity on the left of piston big circle (“l(fā)eft cavity” for short) in the air cylinder through gas circuit to drive the piston to move to the right (forward).

活塞尾部配氣圓柱面經過閥體沖程進氣口，到進氣口被完全堵住時，便切斷壓縮空氣向左腔的供氣，此時，依靠左腔內的空氣膨脹作功，推動活塞繼續向右運動。當活塞大頭左端面通過排氣口時，左腔氣體迅速排出，活塞依靠慣性繼續向右運動，直至沖擊釬尾端面。

The air distribution cylindrical surface at the end of piston passes through the valve stroke air inlet and cuts off supply of compressed air to the left cavity when it is completely blocked at the air inlet. At this time, it does work through the expansion of air in the left cavity and drives the piston to continue to move to the right. When the left end face of the piston big end passes the air outlet, the air in the left cavity is rapidly expelled. The piston continues to move to the right through the force of inertia until it impacts the drill shaft end face.

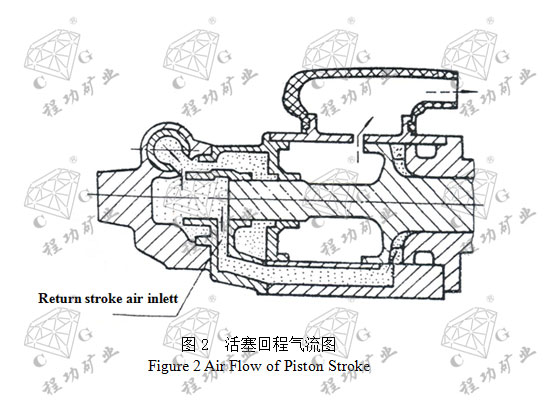

b、回程：如圖2、活塞沖擊釬尾回跳后，壓縮空氣從回程進氣口通入活塞大頭右側空腔（簡稱右腔），推動活塞向左運動（往后）。

b. Return stroke: As shown in Figure 2. After the piston impacts the drill shaft and rebounds, the compressed air enters the cavity on the right of piston big end (“right cavity” for short) from the return stroke air inlet

活塞尾部的配氣圓柱面經過閥體回程進氣口，到進氣口被完全堵住時，便切斷了壓縮空氣向右端的供氣，活塞依靠右腔內的壓縮空氣膨脹作功，繼續向左運動。當活塞大頭右端面通過排氣口時，右腔內的氣體迅速排出，活塞則依靠慣性繼續向左運動到回程的終點，活塞完成了一個往復循環。緊接著又開始下一個循環。

The air distribution cylindrical surface at the end of piston passes through the valve return stroke air inlet and cuts off supply of compressed air to the right cavity when it is completely blocked at the air inlet. At this time, it does work through the expansion of air in the right cavity and drives the piston to continue to move to the left. When the right end face of the piston big end passes the air outlet, the air in the right cavity is rapidly expelled. The piston continues to move to the left through the force of inertia until it reaches the finishing point of the return stroke. So far the piston has finished one recirculation. Then the next cycle begins.

2、轉釬運動：

2. Drilling Motion

棘輪與螺旋母靠螺紋連成一體，螺旋母套在活塞螺旋齒上?；钊麤_程時，棘輪可相對活塞轉動一個角度，活塞只作直線運動。活塞回程時，因棘輪被回轉爪頂住不能轉動，追使活塞沿螺旋槽轉動一個角度，同時，活塞直齒帶動花鍵母（與轉動套連成一體）亦相應轉動一個角度，轉動套的六方孔也帶動釬桿 一同轉動，從而實現轉釬動作。

The ratchet wheel and nuts are linked through screw threads. The nuts are covered on the piston spiral tooth. During the stroke of piston, the ratchet wheel can rotate for an angle relative to the piston. The piston only makes linear motion. During the return stroke of piston, as the ratchet wheel is propped up by the catch hook and is not able to turn, the piston has to turn for an angle along the spiral groove. At the same time, the straight teeth drive the spline (integrated with rotating sleeve) to turn for an angle. The Allen hole of rotating sleeve also drives the drill rod to turn, so as to realize drilling.

3、氣腿推力的調節及快速收縮

3. Adjustment of Air Leg Thrust and Rapid Contraction of Air Leg

a、氣腿推力的調節

a. Adjustment of Air Leg Thrust

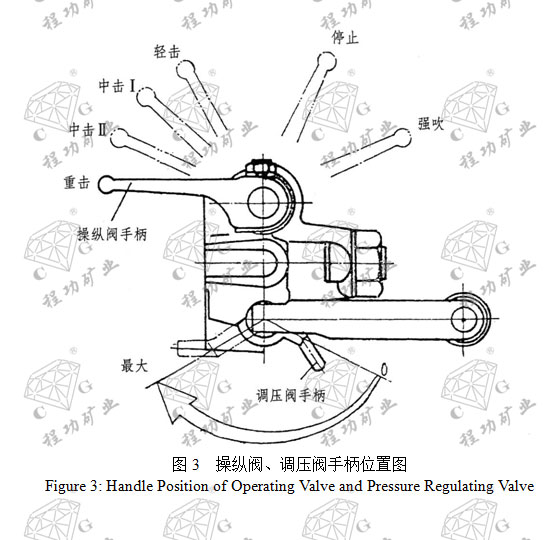

氣腿推力的大小靠調節調壓閥手柄的位置。如圖3.調壓閥手柄從零位調向****，可獲得由零到****的推力。鑿孔時，鑿巖機是依靠氣腿的推力來推進的，適當?shù)卣{(diào)節調壓閥以獲得****推力及最快的鑿巖速度。

The air leg thrust can be adjusted by adjusting the position of handle of pressure regulating valve as shown in Figure 3. The handle of pressure regulating valve is adjusted to the maximum from the zero position and thrust from zero to the maximum can be acquired. During drilling, the rock drills are pushed through the thrust of air leg. Proper adjustment is made of the pressure regulating valve to get the best thrust and the fastest drilling speed.

b、氣腿的快速收縮

b. Rapid Contraction of Air Leg

抓住主機手把上的尼龍板機就可壓下?lián)Q向閥的桿部，氣腿活塞桿即快速收回。此時，可不必關閉操縱閥和調壓閥。

Grasp the nylon board on the handle of the mainframe and the rod of change valve can be pressed down. The air leg piston rod can rapidly contract. At this time, the operating valve and pressure regulating valve do not need to be shut off.

4、機器的運轉

4. Operation of Machine

機器運轉有六個工作內容，靠操縱閥手柄來控制。手柄有六個位置，如圖3.每個位置的工作內容見表2.

There are six parts for the operation of machine. The machine is controlled through the handle of operating valve. There are six positions in the handle as is shown in Figure 3. See Table 2 for the working contents for every position.

輕擊：Gentle strike

中擊I：Medium strike I

中擊II：Medium strike II

重擊：Violent strike

操縱閥手柄：Handle of operating valve

****：Maximum

調壓閥手柄：Handle of pressure regulating valve

強吹：Strong blow

停止：Stop

5、氣水聯動機構

5. Air Water Link Mechanism

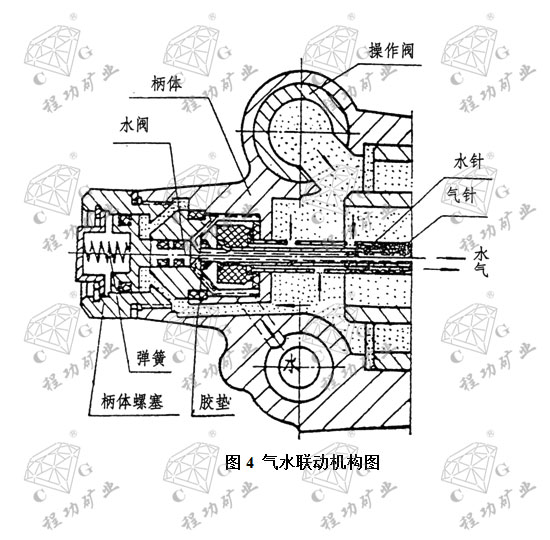

該機構設在柄體上，如圖4、鑿巖機開動時即供水。供水、斷水的過程是通過扳動操作閥手柄來實現的。當操縱閥手柄扳到輕擊位置時（包括以后的中擊，重擊位置在內），操縱閥向氣缸充氣的氣路開始打開，壓縮空氣由操縱閥進氣口經柄體空腔通入氣缸，充滿柄體空腔的壓縮空氣經過氣路推動水閥向左移動打開水路，水即經有關水路通入水針，并進入釬桿中心孔到炮眼底部沖洗巖粉。當扳動操縱閥手柄到停止位置時，向氣缸供氣的通路被操縱閥切斷，鑿巖機停止工作，同時，由于柄體空腔內余氣排空，水閥在彈簧作用下向右移動，堵住膠墊中心孔，將水路關閉。

This mechanism is installed on the handle as shown in Figure 4. Water is supplied when the rock drill is started. The processes of water supply and its cut off are realized through the pulling of the operating valve’s handle. When the handle of the operating valve is pulled to the position of “gentle strike” (including the subsequent “medium strike” and “heavy strike”), the gas circuit of operating valve’s gas filling to the air cylinder begins to be opened. The compressed air flows flow the air inlet of operating valve, through the handle cavity, and to the air cylinder. The compressed air filling the handle cavity drives the water valve to open the water way to the left through the gas circuit. Then the water flows to the squirt through relevant water ways and enters the center hole of drill rod to the bottom of shot hole to wash rock powder. When the handle of operating valve is pulled to the “stop” position, the passage through which air is supplied to the air cylinder is cut off by the operating valve. The rock drills stop. At the same time, as the residual air in the handle cavity is empties, the water valve moves to the right under the action of spring, blocks the center hole of rubber mat, and shuts off the water way.

6、氣針的排水作用

6. Water Discharge of Gas Needle

在水針外套一根氣針，如圖4。兩管之間有一環形空間，鑿巖機工作時，有壓縮空氣通過，有助于使水針的水更好地進入釬桿中孔，同時，可以防止水倒流入鑿巖機內部，以保證建立較好的潤滑條件。

Cover one gas needle outside the water needle as is shown in Figure 4. There is one section of annular space between the two pipes. During the operation of rock drills, compressed air passes by, which helps the water in the water needle better enter the center hole of drill rod. Besides, it can prevent water from flowing back to the inside of the rock drill, so as to ensure good lubricating conditions.
