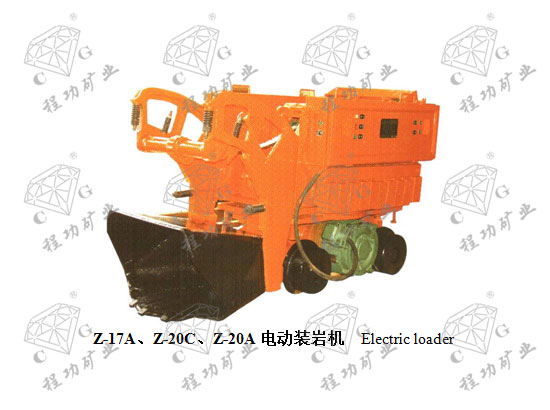

Z型電動裝巖機 Electric loader
其用途主要是在礦井內，將放炮崩落下來的巖石或礦石裝入礦車，實現裝載工作機械化，提高勞動生產率。
It is mainly used in mines to load the rocks or ores from blast firing into mine cars, to realize mechanization of loading and improve labor productivity.
本機器作防爆型與非防爆型，根據用戶對卸料高度的不同要求又各有加高型和普通型，其型號分別為普通型華-1、Z-17，加高型Z-17A，Z-20C， Z-20CA。
There are different types of such machines: explosion proof type and non explosion-proof type. According to users’ different requirements for dumping height, there are also heightened type and ordinary type. The models are respectively ordinary type -1, Z-17, as well as heightened type Z-17A, Z-20C, and Z-20CA.
| 型號規格Model | 華-1 | Z-17 | Z-17A | Z-20C | Z-20CA | |
| 裝載能力Capacity | m3/h | 30 | 30 | 30 | 40 | 40 |
| 鏟料容積Volume | m | 0.17 | 0.17 | 0.17 | 0.20 | 0.20 |
| 裝載寬度 | m | 1.7 | 1.7 | 1.7 | 1.9 | 1.9 |
| 行走速度Speed | m/s | 1 | 1 | 1 | 1 | 1 |
| 軌距（1） | mm | 600 | 600 | 600 | 600 | 600 |
| 功率 Power | kw | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
| 電動機臺數 | 2 | 2 | 2 | 2 | 2 | |
| 卸載高度 Dumping height |
mm | 1010 | 1010 | 1210 | 1250 | 1330 |
| 卸載距離 | mm | 300 | 300 | 300 | 350 | 350 |
| 外型尺寸 Outside dimension |
mm | 2175×1070 ×1750 |
2175
×1070 ×1750 |
2175
×1070 ×1860 |
2117
×1070 ×1940 |
2117
×1070 ×2120 |
| 重量 Weight | kg | 3350-3400 | 3350-3400 | 3350-3400 | 3500 | 3700 |
