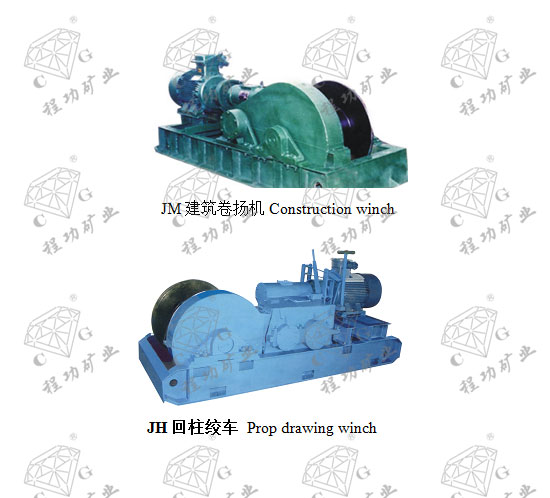

JH型回柱絞車 Mine winch
JH系列回柱較車主要用于礦山井下回柱放頂或做水平牽引重物等。絞車電機、電控設備具有隔爆性能。
Series JH Mining hoisting winch is used in coal,metal,and non-metal mines for the purpose of lifting and ioweing materel andpersonnel in the inclined shafts,also is used as lifting equipment in small shafts.
| 型號規(guī)格 Model | 鋼繩拉力 | 卷 筒 Wingding Drum | 鋼絲繩 Wire cable | 功率 Power | 重量 Weight | |||
| 直徑 Diameter | 寬度 Width | 容繩量 Diameter | 直徑 Duaneter | 寬度 Width | ||||
| kn | mm | mm | m | mm | mm | kw | kg | |
| JH-5 | 50 | 280 | 230 | 80 | 14 | 4.97-6.9 | 5.5 | 580 |
| JH-8 | 80 | 280 | 260 | 11.5 | 14 | 4.97-6.9 | 7.5 | 600 |
| JHC-14 | 140 | 435 | 260 | 11.5 | 22 | 4.8-6.5 | 15 | 1347 |
| JM-14 | 140 | 400 | 280 | 14 | 22 | 5.65-10.75 | 17 | 2621.5 |
我們要求服務人員時刻關注客戶，及時解決設備問題，確保顧客的利益比一切都重要。
