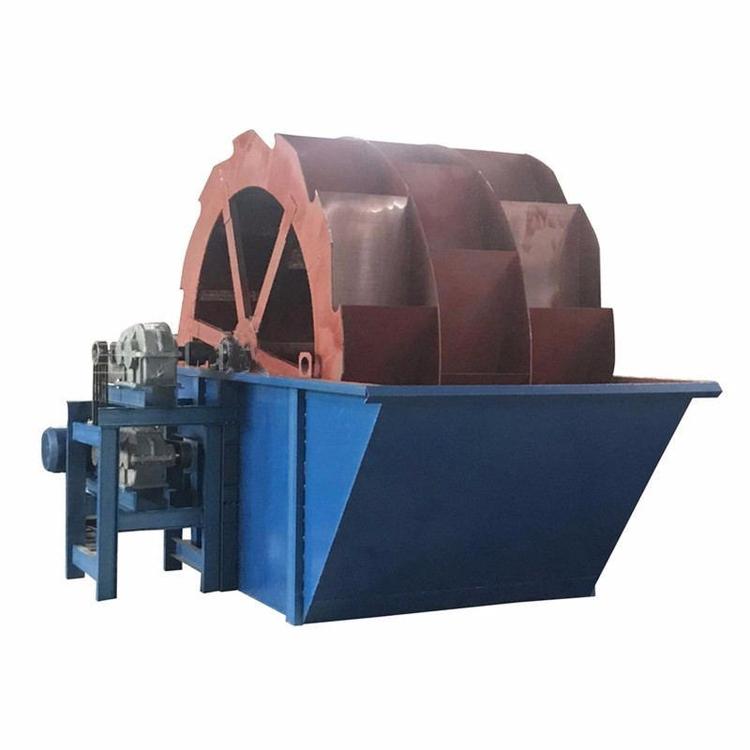

GXS型輪斗式高效洗砂機 High-efficicncy wash-sand
GXS系列洗砂機采用國內外先進技術,結合國內砂石行業實際情況研制生產的配合制砂機使用的高效輪斗式洗砂設備。它具有洗凈度高,結構合理,處理量大,功率消耗小,砂子流失少,故障率低等特點,是國內洗砂設備升級換代的****選擇。
GXS sandstone washer adopts the technology in the world with high energy sowing. It has such features ad reasonable structure, large capacity, high washing degree, less loss loss of medium and dine sand , less breakdown and less wear with driving part separated from water and sand. Its breakdown rate is much lower than spiral sand washer. This machine has become customers’ priority to choose in the a sand industry dometic and abroad.
洗礦機工作時,電機通過三角帶、減速機、齒輪減速后帶動葉輪緩慢轉動,砂石有給料槽進入洗槽中在葉輪的帶動下翻滾,并互相研磨,除去覆蓋砂石表面的雜質,同時破壞包覆砂粒的水汽層,以利于脫水;同時加水形成強大水流,及時將雜質及比重小的異物帶走,并從溢出口洗槽排出,完成清洗作用。干凈的砂石由葉片帶走最后砂石從旋轉的葉輪倒入出料槽,完成砂石的清洗作用。
During the operation of sand and gravel washer, the motor drives the slow rotation of the impeller after the V-belt, speed reducer and gears reduce their running speed. The sand enters from the feeding trough to the washing trough and turns over when driven by the impeller. The sand grinds each other and removes the impurities covering their surfaces. Besides, it destroys the water vapor layer cladding the sand to make it easier for dewatering. Then when water is added, strong current is formed to duly take away impurities and light foreign matters which are discharged out from the washing trough at the overflow outlet. So far the washing is finished. Clean sand is taken away by the impeller and poured into the discharge trough from the turning impellers to finish its washing.
型號規格 Model | 螺旋直徑 Spiral Dia | 返砂 Cell Dimensions | 洗選粒度 Feed size | 生產能力 Capa. | 轉速 Spiral speed | 電機功率 Power | 質量 Weight |
mm | mm | t/h | r.p.m | kw | t | ||
GXS2000 | Ф2000 | 8T | ≤10 | ≤40 | 1-2 | 4 | 1.9 |
GXS2600 | Ф2600 | 15T | ≤10 | ≤90 | 1-2 | 5.5 | 2.9 |
GXS2800 | Ф2800 | 70T | ≤10 | ≤130 | 0.8-1.5 | 7.5 | 3.1 |
GXS3000 | Ф3000 | 100T | ≤10 | ≤200 | 0.8-1.2 | 11 | 8.1 |
GXS3200 | Ф3200 | 130T | ≤10 | ≤300 | 11 | 9.8 | |
GXS3600 | Ф3600 | 200T | ≤10 | ≤500 | 15 | 14.2 |
