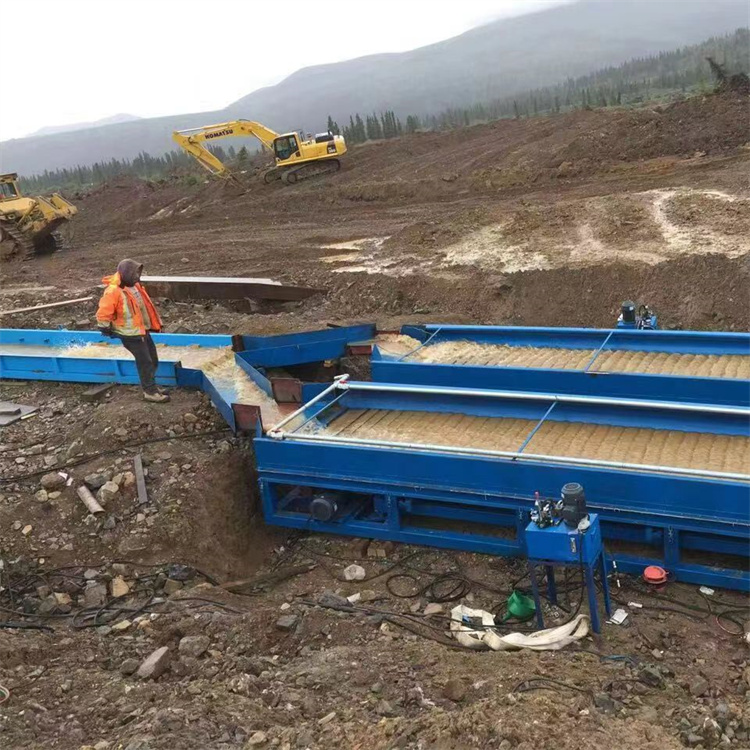

CGLC 120A型雙層組合式砂金選礦溜槽是我院、廠生產的采金設備系列產品之一，經過多年的生產實驗，多次改進、創新，產品的參數質量不斷提高，深受國內外采金用戶的好評。
它具備以下特點：
1、金礦砂處理量大，每小時可洗礦砂 120 m3/h；
2、結構合理，強度高，可拆裝性強，便于運輸搬遷；
3、采金回收率高，回收率可達到80-85%，不但能回收粒狀金片狀金，還可回收微粒金；
4、適應性很強，可在任何條件的礦體內選礦。
| 礦砂處理量 | m3/h | 120 |
| 總用水量 | m3/h | 882 |
| 12"寸泵（主噴水管） | m3/h | 792 |
| 4"寸泵 | m3/h | 90 |
| 電機總?cè)萘?/td> | kw | 37 |
| 12"寸泵電機功率 | kw | 22 |
| 4"寸泵電機功率 | kw | 7.5 |
| 主溜槽 | m | 5.8 |
| 副溜槽 | m | 7.3 |
| 溜槽寬度 | ||
| 主溜槽 | m | 1.0 |
| 副溜槽（上口） | m | 0.8 |
| 副溜槽（下口） | m | 1.1 |
| 溜格數 | ||
| 主溜格 | （個） | 8 |
| 副溜格（兩邊） | （個） | 22 |
| 溜槽安裝角度 | （°） | 10~12 |
| 塑料毛氈總長 | m | 21 |
| 外形尺寸 | m | 12.3×4×2.2 |
| 總質量 | t | 11 |
| 型號規格 Model | CGLC120A | CGLC60A | CGLC40A | |
|---|---|---|---|---|
| 礦砂處理量Mineral sand handling capacity | m3/h | 120 | 60-80 | 40 |
| 總用水量Overall water consumption | m3/h | 882 | 882 | 585 |
| 12"寸泵（主噴水管）12'' pump (major water spray ipe） | m3/h | 792 | 792 | 540 |
| 4"寸泵4'' pump | m3/h | 90 | 90 | 45 |
| 電機總?cè)萘縊verall capacity of motor | kw | 37 | 32 | 25 |
| 12"寸泵電機功率12''pump motor power | kw | 22 | 22 | 17 |
| 4"寸泵電機功率4''pump motor power | kw | 7.5 | 7.5 | 5.5 |
| 主溜槽Primary sluice | m | 5.8 | 5.8 | 5 |
| 副溜槽Secondary sluice | m | 7.3 | 7.3 | 6.2 |
| 溜槽寬度Sluice width | ||||
| 主溜槽Primary sluice | m | 1.0 | 1.0 | 8 |
| 副溜槽（上口）Secondary sluice (upper opening） | m | 0.8 | 0.8 | 0.608 |
| 副溜槽（下口）Secondary sluice（Lower opening） | m | 1.1 | 1.08 | 0.838 |
| 溜格數No. of sluice lattice | ||||
| 主溜格Primary sluice lattice | （個） | 8 | 9 | 8 |
| 副溜格（兩邊）Secondary sluice lattice（two edges） | （個） | 22 | 22 | 18 |
| 溜槽安裝角度Sluice mounting angle | （°） | 10~12 | 10-12 | 11-12 |
| 塑料毛氈總長Overall length of plastic felt | m | 21 | 21 | 15 |
| 外形尺寸Outside dimension | m | 12.3×4×2.2 | 12.3×4×2.2 | 11×2.5×1.84 |
| 總質量Overall quality | t | 11 | 11 | 8 |
1、上料臺：是承裝礦砂料的部位，也是充分造漿的部位。
2、篩分裝置：篩分裝置由篩板和大小分流箱組成。
3、溜槽：溜槽分主溜槽、副溜槽。主溜槽在中間，副溜槽分置兩側。是采金選礦的主要部位。
CGLC 120A Combinational Placer Gold Separation Sluice is among a series of gold separating equipment manufactured by our Institute. After many years of production practice and with improvements and innovations having been made many times, the product has kept upgrading in terms of performance and quality and was well received by users at home and abroad.The product has obtained patent from China National Patent Bureau.
The product has the following features:
A. Large gold ore handling capacity with gold washing of 120m3/h.
B.Rational construction, high strength and convenient dismounting, easy for transport and transfer.
C. High recovery of gold mining up to 80-85, capable of recovering not only granular and platy gold but also fine grained gold.
D. Strong adaptability, applicable for ore separation at any condition.
| Mineral sand handling capacity | m3/h | 120 |
| Overall water consumption | m3/h | 882 |
| 12'' pump (major water spray ipe） | m3/h | 792 |
| 4'' pump | m3/h | 90 |
| Overall capacity of motor | kw | 37 |
| 12''pump motor power | kw | 22 |
| 4''pump motor power | kw | 7.5 |
| Primary sluice | m | 5.8 |
| Secondary sluice | m | 7.3 |
| Sluice width | ||
| Primary sluice | m | 1.0 |
| Secondary sluice (upper opening） | m | 0.8 |
| （Lower opening） | m | 1.1 |
| No. of sluice lattice | ||
| Primary sluice lattice | （Piece） | 8 |
| Secondary sluice lattice（two edges） | （Piece） | 22 |
| Sluice mounting angle | （°） | 10~12 |
| Overall length of plastic felt | m | 21 |
| Outside dimension | m | 12.3×4×2.2 |
| Overall quality | t | 11 |
A．Feeding platform:place where mineral sand material is carried and slurry is produced.
B．Screening apparatus: made up of screen plate and distribution boxes of various sizes.
C．Sluice:consisting of primary sluice and secondary sluice with the primary sluice located in the middle and the primary sluices at side; a major part.
